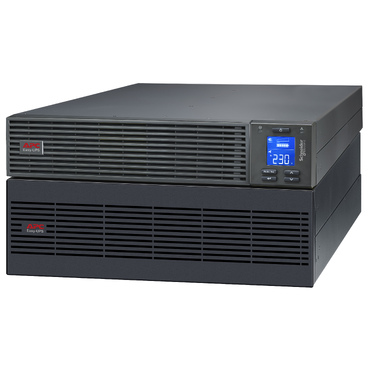

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet

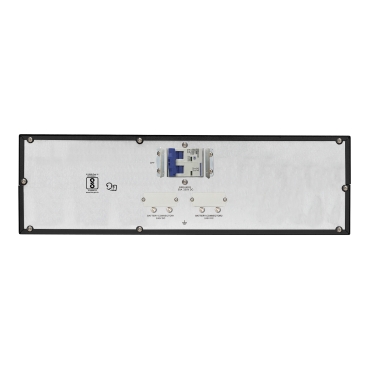

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet - Image 2

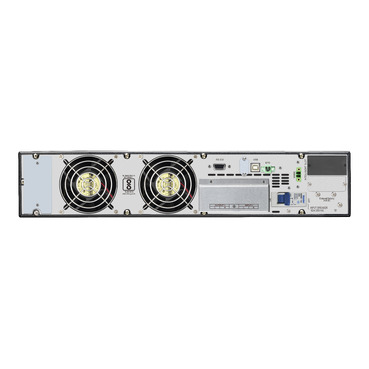

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet - Image 3

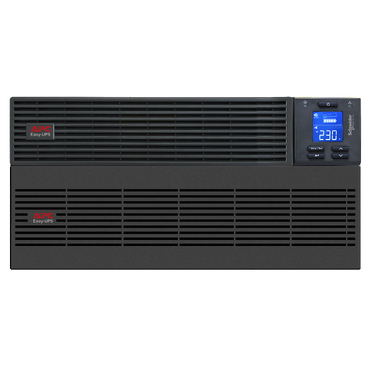

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet - Image 4

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet

₹166,650.00



  • 10kVA/10kW double-conversion on-line pure sine wave 5U rackmount UPS
  • High operating efficiency in energy-saving ECO mode
  • Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime
  • Easy-to-read LCD interface for detailed and accurate information on UPS status
Enquire on WhatsApp
SKU: SRV10KRIL-IN Category:

Description

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



Physical
Colour
 Black (RAL 7010)
Height
 219.5 mm
Width
 438 mm
Depth
 612 mm
Net weight
 79 kg
Mounting location
 Front
Mounting preference
 Lower
Mounting mode
 Rack-mounted with kit
USB compatible
 Yes
Mounting position
 Horizontal

Specifications

Overview
Presentation
 High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Main
Run time for load
10000 W
Min-max: 1000-10000 W
2 min 32s
Max. Capacity Used

100 %
Main input voltage
 230 V AC 1 phase
Other input voltage
 220 V
240 V
Efficiency at full load
 110…300 V 60 % load
176…300 V half load
Input connection
 1 hard wire 3-wire (1P + N + E)
Input frequency
 40…70 Hz auto sensing
Output voltage
 230 V AC 1 phase
Other output voltage
 220 V
240 V
Rated power in W
 10000 W
Rated power in VA
 10000 VA
Output connection
 Hard wire 3-wire (1P + N + E) for 1 zone(s)
Bypass type
 Internal bypass (automatic and manual)
Crest factor
 3 : 1
Harmonic distortion
 1 %
Maximum configurable power in VA
 10000 VA
Maximum configurable power in W
 10000 W
UPS topology
 On-Line
Waveform type
 Sine wave
Efficiency
 94 % (full load)
Output frequency
 50/60 Hz +/- 3 Hz sync to mains
Graphs
Run Time
Efficiency
Complementary
Additional information
 Configurable for 220 : 230 or 240 nominal output voltage
Battery type
 Lead-acid external included
Control panel
 Multifunction LCD status and control console
Emergency power off
 Yes
Alarm
 Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity
 Serial port
USB port
Available expansion slot
Surge energy rating
 600 J
Number of rack unit
 5U
Color
 Black (RAL 7010)
Height
 219.5 mm
Width
 438 mm
Depth
 612 mm
Product weight
 79 kg
Mounting location
 Front
Mounting preference
 Lower
Mounting mode
 Rack-mounted with kit
USB compatible
 Yes
Mounting position
 Horizontal
Mounting mode
 Rack-mounted with kit sold separately
Number of power module filled slots
 0
Number of power module free slots
 0
Redundant
 No
Range of product
 Easy UPS On-Line
Product or component type
 Uninterruptible power supply (UPS)
Environment
Product certification
 BIS
Ambient air temperature for operation
 0…40 °C
Ambient air temperature for storage
 -20…60 °C
Storage altitude
 0…15000 m
IP protection
 IP20
Relative humidity
 0…95 % non-condensing
Storage relative humidity
 0…95 % non-condensing
Acoustic level
 60 dBA
Heat dissipation
 2128 Btu/h
Operating altitude
 0…3000 m
Batteries & Runtime
Battery type
 Lead-acid battery
Battery voltage
 240 V
Extendable runtime
 1
Included battery module
 1
Empty battery slot
 0
Typical recharge time
 5 h
Battery charging power
 1170 W rated
Battery power in VAh
 1512 VAh runtime
Packing Units
Unit Type of Package 1
 PCE
Number of Units in Package 1
 1
Package 1 Height
 49 cm
Package 1 Width
 87 cm
Package 1 Length
 60 cm
Package 1 Weight
 90 kg
Contractual warranty
Warranty (in months)
 24
