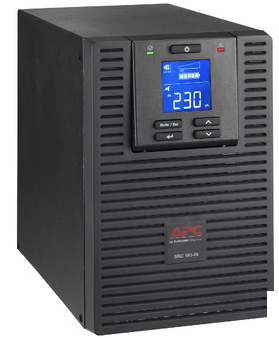

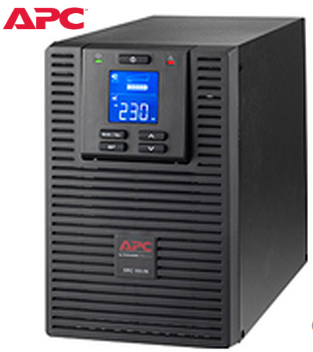

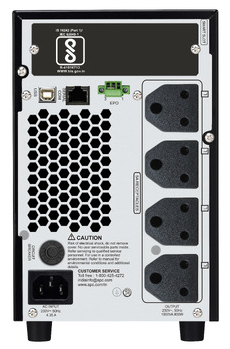

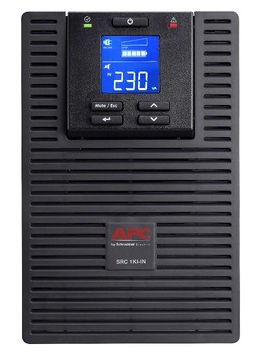

APC Smart-UPS RC 1000VA, 230V, 4x India 3-pin 6A outlets, harsh environment
APC Smart-UPS RC 1000VA, 230V, 4x India 3-pin 6A outlets, harsh environment - Image 2
APC Smart-UPS RC 1000VA, 230V, 4x India 3-pin 6A outlets, harsh environment - Image 3
APC Smart-UPS RC 1000VA, 230V, 4x India 3-pin 6A outlets, harsh environment - Image 4

APC Smart-UPS RC 1000VA, 230V, 4x India 3-pin 6A outlets, harsh environment

₹24,000.00

Usually in Stock



  • 1000VA/800W UPS with internal battery, 4 outlets and improved efficiency.
  • 220V, 230V and 240V user selectable output.
  • SmartSlot for optional remote management and monitoring of the UPS and connected load.
  •  2-year warranty on UPS and internal batteries.
Enquire on WhatsApp
SKU: SRC1KI-IN Category:

The APC Smart-UPS RC is designed for harsh environments with a power rating of 1000VA and output power capacity of 800 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as India 3-pin 6A outlets.

Main documents

Products
Product Datasheet
Brochure
User guide



Specifications

Main
Run time for load

800 W

Min-max: 80-800 W
8 min 2s
Max. Capacity Used
100 %
Main input voltage
 230 V AC 1 phase
Input connection
 IS 1293 India 3-pin 6A
Switching current capacity
 10 A
Plug standard
 India 3-pin 6A
Efficiency at full load
 110...280 V half load
Input frequency
 40...70 Hz
Output voltage
 230 V 1 phase
Other output voltage
 220 V
240 V
Rated power in W
 800 W
Rated power in VA
 1000 VA
Output connection
 4 India 3-pin 6A
Bypass type
 Built-in bypass
Crest factor
 3 : 1
Harmonic distortion
 Less than 2 %
Maximum configurable power in VA
 1000 VA
Maximum configurable power in W
 800 W
UPS topology
 On-Line
Waveform type
 Sine wave
Efficiency
 90 % (full load)
88 % (half load)
Output frequency
 50/60 Hz +/- 3 Hz sync to mains
Graphs
Run Time
Complementary
Battery type
 Lead-acid internal
Control panel
 LED status display with on line : on battery : replace battery and overload indicators
Alarm
 Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity
 Serial port
USB port
Cable length
 1.5 m
Number of cables
 1
Color
 Black
Height
 220 mm
Width
 145 mm
Depth
 400 mm
Product weight
 13.5 kg
Mounting preference
 No preference
Mounting mode
 Not rack-mountable
Two post mountable
 0
USB compatible
 No
Mounting mode
 Tower
Provided equipment
 Smart UPS signalling RS-232 cable
User manual
Warranty card
Number of power module filled slots
 0
Number of power module free slots
 0
Redundant
 No
Range of product
 Smart-UPS On-Line
Product or component type
 Uninterruptible power supply (UPS)
Environment
Product certification
 BIS
Ambient air temperature for operation
 0…40 °C
Ambient air temperature for storage
 -20…60 °C
Storage altitude
 0…4572 m
Relative humidity
 0…95 %
Storage relative humidity
 0…95 %
Operating altitude
 0...3000 ft
Batteries & Runtime
Battery type
 Lead-acid battery
Extendable runtime
 0
Included battery module
 0
Empty battery slot
 0
Typical recharge time
 6 h
Battery charging power
 54 W rated
Packing Units
Unit Type of Package 1
 PCE
Number of Units in Package 1
 1
Package 1 Height
 34 cm
Package 1 Width
 47.8 cm
Package 1 Length
 23.5 cm
Package 1 Weight
 14.5 kg
Contractual warranty
Warranty (in months)
 24
