Description

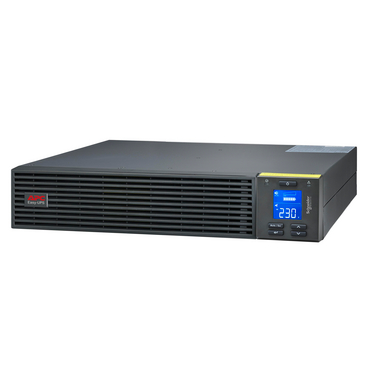

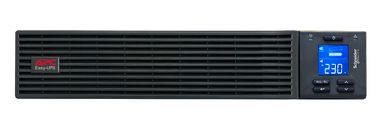

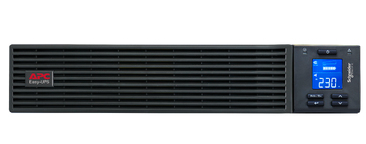

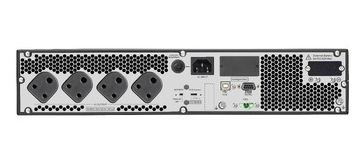

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x India 3-pin 6A outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 rail kit sold separately. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Physical
Colour
|
Black (RAL 7010) |
Height
|
86 mm |
Width
|
438 mm |
Depth
|
332 mm |
Net weight
|
7.2 kg |
Mounting location
|
Front |
Mounting preference
|
No preference |
Mounting mode
|
Rack-mounted with kit |
USB compatible
|
Yes |
Mounting position
|
Horizontal |
Specifications
Overview
Presentation
|
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
Main
Main input voltage
|
230 V AC 1 phase |
Other input voltage
|
220 V
240 V |
Input connection
|
IEC 60320 C14 |
Input protection
|
Circuit breaker |
Efficiency at full load
|
110…280 V half load
160…280 V full load |
Input frequency
|
40…70 Hz auto sensing |
Output voltage
|
230 V AC 1 phase |
Other output voltage
|
220 V
240 V |
Rated power in W
|
800 W |
Rated power in VA
|
1000 VA |
Output connection
|
4 IS 1293 India 3-pin 6A |
Bypass type
|
Internal bypass (automatic and manual) |
Crest factor
|
3 : 1 |
Harmonic distortion
|
3 % |
Maximum configurable power in VA
|
1000 VA |
Maximum configurable power in W
|
800 W |
UPS topology
|
On-Line |
Waveform type
|
Sine wave |
Efficiency
|
88 % (full load) |
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains |
Complementary
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage |
Battery type
|
Lead-acid external sold separately |
Control panel
|
Multifunction LCD status and control console |
Emergency power off
|
Yes |
Alarm
|
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
UPS connectivity
|
Serial port
USB port
Available expansion slot |
Surge energy rating
|
600 J |
Number of rack unit
|
2U |
Cable length
|
1.5 m |
Number of cables
|
1 |
Color
|
Black (RAL 7010) |
Height
|
86 mm |
Width
|
438 mm |
Depth
|
332 mm |
Product weight
|
7.2 kg |
Mounting location
|
Front |
Mounting preference
|
No preference |
Mounting mode
|
Rack-mounted with kit |
USB compatible
|
Yes |
Mounting position
|
Horizontal |
Mounting mode
|
Rack-mounted with kit sold separately |
Number of power module filled slots
|
0 |
Number of power module free slots
|
0 |
Redundant
|
No |
Range of product
|
Easy UPS On-Line |
Product or component type
|
Uninterruptible power supply (UPS) |
Environment
Product certification
|
BIS |
Ambient air temperature for operation
|
0…40 °C |
Ambient air temperature for storage
|
-20…60 °C |
Storage altitude
|
0…15000 m |
IP protection
|
IP20 |
Relative humidity
|
0…95 % non-condensing |
Storage relative humidity
|
0…95 % non-condensing |
Acoustic level
|
50 dBA |
Heat dissipation
|
372 Btu/h |
Operating altitude
|
0…3000 m |
Batteries & Runtime
Battery type
|
External battery system |
Battery voltage
|
24 V |
Extendable runtime
|
0 |
Included battery module
|
0 |
Empty battery slot
|
0 |
Battery charging power
|
235 W rated |
Packing Units
Unit Type of Package 1
|
PCE |
Number of Units in Package 1
|
1 |
Package 1 Height
|
24 cm |
Package 1 Width
|
55 cm |
Package 1 Length
|
50 cm |
Package 1 Weight
|
10.3 kg |
Contractual warranty
Warranty (in months)
|
24 |
