Description

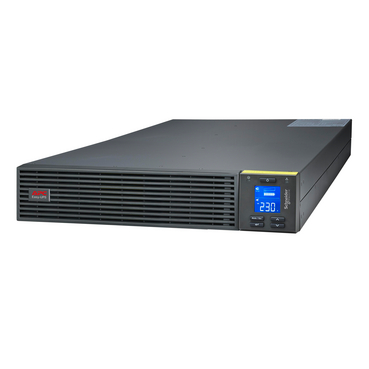

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Colour |
Black (RAL 7010) |
|---|---|
Height |
86.5 mm |
Width |
438 mm |
Depth |
615 mm |
Net weight |
15 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted with kit |
USB compatible |
No |
Mounting position |
Horizontal |
Specifications
Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|
Main input voltage |
230 V AC 1 phase |
|---|---|
Other input voltage |
220 V 240 V |
Input protection |
Circuit breaker |
Switching current capacity |
50 A |
Efficiency at full load |
110…300 V half load 176…300 V full load |
Input connection |
1 hard wire 3-wire (1P + N + E) |
Input frequency |
40…70 Hz auto sensing |
Output voltage |
230 V AC 1 phase |
Other output voltage |
220 V 240 V |
Rated power in W |
5000 W |
Rated power in VA |
5000 VA |
Output connection |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
Bypass type |
Internal bypass (automatic and manual) |
Crest factor |
3 : 1 |
Harmonic distortion |
1 % |
Maximum configurable power in VA |
5000 VA |
Maximum configurable power in W |
5000 W |
UPS topology |
On-Line |
Waveform type |
Sine wave |
Efficiency |
94 % (full load) |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
Battery type |
Lead-acid external sold separately |
Control panel |
Multifunction LCD status and control console |
Emergency power off |
Yes |
Free slot |
1 |
Alarm |
Audible and visible alarms : prioritized by severity |
UPS connectivity |
Serial port USB port Available expansion slot |
Surge energy rating |
600 J |
Number of rack unit |
2U |
Color |
Black (RAL 7010) |
Height |
86.5 mm |
Width |
438 mm |
Depth |
615 mm |
Product weight |
15 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted with kit |
USB compatible |
No |
Mounting position |
Horizontal |
Mounting mode |
Rack-mounted with included kit |
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Redundant |
No |
Range of product |
Easy UPS On-Line |
Product or component type |
Uninterruptible power supply (UPS) |
Product certification |
BIS |
|---|---|
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-20…60 °C |
Storage altitude |
0…15000 m |
IP protection |
IP20 |
Relative humidity |
0…95 % non-condensing |
Storage relative humidity |
0…95 % non-condensing |
Acoustic level |
55 dBA |
Heat dissipation |
1172 Btu/h |
Operating altitude |
0…3000 m |
Battery type |
External battery system |
|---|---|
Battery voltage |
240 V |
Extendable runtime |
1 |
Included battery module |
0 |
Empty battery slot |
0 |
Battery charging power |
1170 W rated |
Unit Type of Package 1 |
PCE |
|---|---|
Number of Units in Package 1 |
1 |
Package 1 Height |
24 cm |
Package 1 Width |
76 cm |
Package 1 Length |
60 cm |
Package 1 Weight |
18 kg |
Warranty (in months) |
24 |
|---|
