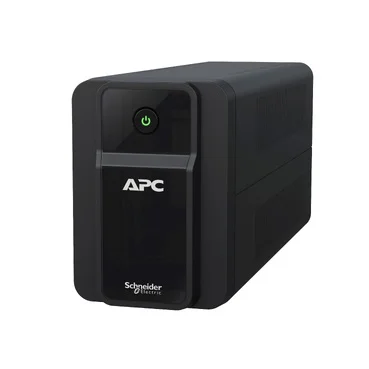

APC Back-UPS, 600VA, Tower, 230V, 3 India 3-pin 6A Outlets, AVR, W/O Auto Shutdown Software
₹3,150.00
This APC Back-UPS provides power backup and surge protection for home and home office devices
- 600VA/360W compact tower Back-UPS
- Automatic Voltage Regulation helps correct utility voltage
- Visual LED and audible alarms for early and easy notifications
- Resettable circuit breaker helps protect UPS during overload conditions
- Battery Connector for safe transport and shipping
| Main | |
Run time for loadW Min-max: 36-360 W |
— |
Max. Capacity Used |
100 % |
Main input voltage |
230 V AC 1 phase |
Input connection |
BS 546 India 3-pin 6A 6 A |
Plug standard |
India 3-pin 6A |
Efficiency at full load |
140...300 V |
Input frequency |
40...70 Hz auto-sensing |
Output voltage |
230 V AC 1 phase |
Rated power in W |
360 W |
Rated power in VA |
600 VA |
Output connection |
3 |
Type of USB power supply |
None |
Maximum configurable power in VA |
600 VA |
Maximum configurable power in W |
360 W |
Transfer time |
10 ms typical : 12 ms maximum |
UPS topology |
Line interactive |
Waveform type |
Stepped approximation to a sinewave |
Full load runtime |
360 W |
Output frequency |
sync to mains |
| Graphs | |
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |
| Complementary | |
Battery type |
Lead-acid internal included |
Control panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
UPS connectivity |
None |
Surge energy rating |
255 J |
Cable length |
1.2 m |
Number of cables |
1 |
Color |
Black |
Height |
222 mm |
Width |
346 mm |
Depth |
142 mm |
Product weight |
4.5 kg |
Mounting mode |
Not rack-mountable |
Two post mountable |
0 |
USB compatible |
Yes |
Mounting mode |
Tower |
Max runtime |
0 min |
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Redundant |
No |
Range of product |
Back-UPS |
Product or component type |
Uninterruptible power supply (UPS) |
| Environment | |
Product certification |
BIS |
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-15…45 °C |
Storage altitude |
0…15000 m |
Relative humidity |
0…95 % |
Storage relative humidity |
0…95 % |
Acoustic level |
45 dBA |
Operating altitude |
0...3000 m |
| Batteries & Runtime | |
Battery type |
Lead-acid battery |
Battery voltage |
12 V |
Battery graph comment |
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
Extendable runtime |
0 |
Included battery module |
0 |
Empty battery slot |
0 |
Typical recharge time |
6 h |
RBC quantity |
1 |
Battery charging power |
14 W rated 20 W rated |
| Packing Units | |
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
13.85 cm |
Package 1 Width |
9.8 cm |
Package 1 Length |
31.0 cm |
Package 1 Weight |
4.2 kg |
SCC14 |
10731304743504 |
| Contractual warranty | |
Warranty (in months) |
24 |
