Description

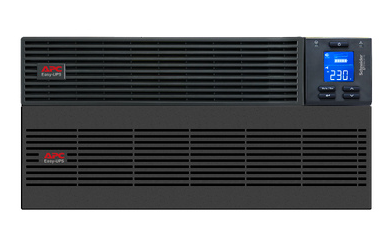

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA double-conversion on-line rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Physical
Colour
|
Black (RAL 7010) |
Height
|
219.5 mm |
Width
|
438 mm |
Depth
|
615 mm |
Net weight
|
78 kg |
Mounting location
|
Front |
Mounting preference
|
Lower |
Mounting mode
|
Rack-mounted with kit |
USB compatible
|
No |
Mounting position
|
Horizontal |
Specifications
Overview
Presentation
|
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
Main
|
|
|
Max. Capacity Used
|
|
Main input voltage
|
230 V AC 1 phase |
Other input voltage
|
220 V
240 V |
Switching current capacity
|
50 A |
Efficiency at full load
|
110…300 V half load
176…300 V full load |
Input connection
|
1 hard wire 3-wire (1P + N + E) |
Input frequency
|
40…70 Hz auto sensing |
Output voltage
|
230 V AC 1 phase |
Other output voltage
|
220 V
240 V |
Rated power in W
|
5000 W |
Rated power in VA
|
5000 VA |
Output connection
|
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
Bypass type
|
Internal bypass (automatic and manual) |
Crest factor
|
3 : 1 |
Maximum configurable power in VA
|
5000 VA |
Maximum configurable power in W
|
5000 W |
UPS topology
|
On-Line |
Waveform type
|
Sine wave |
Efficiency
|
94 % (full load) |
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains |
Graphs
Run Time
|
|
Efficiency
|
|
Complementary
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage |
Battery type
|
Lead-acid external included |
Control panel
|
Multifunction LCD status and control console |
Emergency power off
|
Yes |
Alarm
|
Audible and visible alarms : prioritized by severity |
UPS connectivity
|
Serial port
USB port
Available expansion slot |
Surge energy rating
|
600 J |
Number of rack unit
|
5U |
Color
|
Black (RAL 7010) |
Height
|
219.5 mm |
Width
|
438 mm |
Depth
|
615 mm |
Product weight
|
78 kg |
Mounting location
|
Front |
Mounting preference
|
Lower |
Mounting mode
|
Rack-mounted with kit |
USB compatible
|
No |
Mounting position
|
Horizontal |
Mounting mode
|
Rack-mounted with included kit |
Max runtime
|
8 min |
Number of power module filled slots
|
0 |
Number of power module free slots
|
0 |
Redundant
|
No |
Range of product
|
Easy UPS On-Line |
Product or component type
|
Uninterruptible power supply (UPS) |
Environment
Product certification
|
BIS |
Ambient air temperature for operation
|
0…40 °C |
Ambient air temperature for storage
|
-20…60 °C |
Storage altitude
|
0…15000 m |
IP protection
|
IP20 |
Relative humidity
|
0…95 % non-condensing |
Storage relative humidity
|
0…95 % non-condensing |
Acoustic level
|
55 dBA |
Operating altitude
|
0…3000 m |
Batteries & Runtime
Battery type
|
Lead-acid battery |
Battery voltage
|
240 V |
Extendable runtime
|
1 |
Included battery module
|
1 |
Empty battery slot
|
0 |
Typical recharge time
|
5 h |
Battery charging power
|
469 W rated |
Battery power in VAh
|
1413 VAh runtime |
Packing Units
Unit Type of Package 1
|
PCE |
Number of Units in Package 1
|
1 |
Package 1 Height
|
49 cm |
Package 1 Width
|
87 cm |
Package 1 Length
|
60 cm |
Package 1 Weight
|
88 kg |
Contractual warranty
Warranty (in months)
|
24 |
