Description

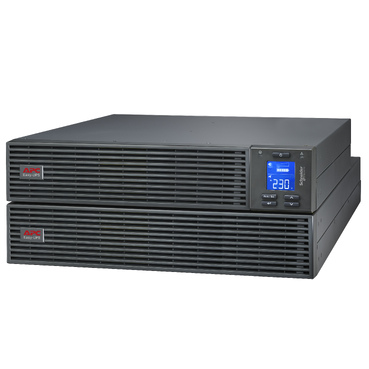

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input, 3x India 3-pin 6A and hard wire 3-wire(1P+ N+E) outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Colour |
Black (RAL 7010) |
|---|---|
Height |
172 mm |
Width |
438 mm |
Depth |
632 mm |
Net weight |
49.3 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted with kit |
USB compatible |
Yes |
Mounting position |
Horizontal |
Specifications
Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|
Run time for load1600W
Min-max: 160-1600 W
|
20min 53s
|
|---|---|
|
Max. Capacity Used
|
100 %
|
Main input voltage |
230 V AC 1 phase |
Other input voltage |
220 V 240 V |
Efficiency at full load |
110…280 V half load 160…280 V half load |
Input connection |
1 hard wire 3-wire (1P + N + E) |
Input frequency |
40…70 Hz auto sensing |
Output voltage |
230 V AC 1 phase |
Other output voltage |
220 V 240 V |
Rated power in W |
1600 W |
Rated power in VA |
2000 VA |

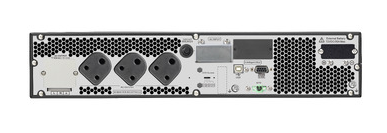

Output connection |
3 IS 1293 India 3-pin 6A |
Output connection |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
Bypass type |
Internal bypass (automatic and manual) |
Crest factor |
3 : 1 |
Harmonic distortion |
3 % |
Maximum configurable power in VA |
2000 VA |
Maximum configurable power in W |
1600 W |
UPS topology |
On-Line |
Waveform type |
Sine wave |
Efficiency |
88 % (full load) |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Run Time |
|
|---|---|
Efficiency |
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
Battery type |
Lead-acid external included |

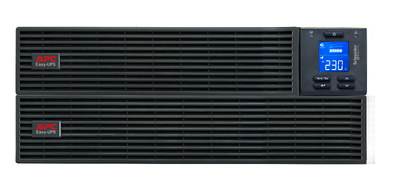

Control panel |
Multifunction LCD status and control console |
Emergency power off |
Yes |
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
UPS connectivity |
Serial port USB port Available expansion slot |
Surge energy rating |
600 J |
Number of rack unit |
4U |
Number of cables |
1 |
Color |
Black (RAL 7010) |
Height |
172 mm |
Width |
438 mm |
Depth |
632 mm |
Product weight |
49.3 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted with kit |
USB compatible |
Yes |
Mounting position |
Horizontal |
Mounting mode |
Rack-mounted with kit sold separately |
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Redundant |
No |
Range of product |
Easy UPS On-Line |
Product or component type |
Uninterruptible power supply (UPS) |
Product certification |
BIS |
|---|---|
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-20…60 °C |
Storage altitude |
0…15000 m |
IP protection |
IP20 |
Relative humidity |
0…95 % non-condensing |
Storage relative humidity |
0…95 % non-condensing |
Acoustic level |
50 dBA |
Heat dissipation |
745 Btu/h |
Operating altitude |
0…3000 m |

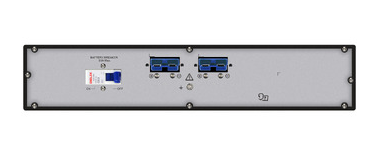

Battery type |
Lead-acid battery |
|---|---|
Battery voltage |
72 V |
Extendable runtime |
1 |
Included battery module |
1 |
Empty battery slot |
0 |
Typical recharge time |
5.5 h |
Battery charging power |
350 W rated |
Battery power in VAh |
918 VAh runtime |
Unit Type of Package 1 |
PCE |
|---|---|
Number of Units in Package 1 |
1 |
Package 1 Height |
48 cm |
Package 1 Width |
76 cm |
Package 1 Length |
60 cm |
Package 1 Weight |
58 kg |
Warranty (in months) |
24 |
|---|
