Description

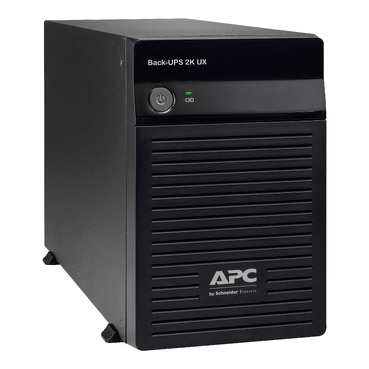

It provides 2000VA and 1200W of power and nominal output voltage of 230V. It features a line-interactive topology with a stepped sine wave output. It is compatible with external batteries for extended runtime.
Physical
Colour
|
Black |
Height
|
220 mm |
Width
|
145 mm |
Depth
|
392 mm |
Net weight
|
13.4 kg |
Mounting preference
|
No preference |
Mounting mode
|
Not rack-mountable |
Two post mountable
|
0 |
USB compatible
|
No |
Specifications
Main
Main input voltage
|
230 V AC 1 phase |
Plug standard
|
India 3-pin 16A |
Efficiency at full load
|
140…300 V |
Input frequency
|
40…70 Hz auto sensing |
Output voltage
|
230 V AC 1 phase |
Rated power in W
|
1200 W |
Rated power in VA
|
2000 VA |
Output connection
|
6 |
Output connection
|
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
Type of USB power supply
|
None |
Maximum configurable power in VA
|
2000 VA |
Maximum configurable power in W
|
1200 W |
Transfer time
|
8 ms typical : 12 ms maximum |
UPS topology
|
Line interactive |
Waveform type
|
Stepped approximation to a sinewave |
Efficiency
|
92 % (full load) |
Output frequency
|
50 Hz +/- 1 Hz unsynchronised |
Complementary
Battery type
|
Lead-acid internal included |
Control panel
|
LED Status display with on line : on battery |
UPS connectivity
|
USB port |
Surge energy rating
|
160 J |
Cable length
|
1.5 m |
Color
|
Black |
Height
|
220 mm |
Width
|
145 mm |
Depth
|
392 mm |
Product weight
|
13.4 kg |
Mounting preference
|
No preference |
Mounting mode
|
Not rack-mountable |
Two post mountable
|
0 |
USB compatible
|
No |
Mounting mode
|
Tower |
Number of power module filled slots
|
0 |
Number of power module free slots
|
0 |
Redundant
|
No |
Range of product
|
Back-UPS |
Product or component type
|
Uninterruptible power supply (UPS) |
Environment
Product certification
|
BIS |
Ambient air temperature for operation
|
0…40 °C |
Ambient air temperature for storage
|
0…45 °C |
Storage altitude
|
0…914.4 m |
IP protection
|
IP20 |
Relative humidity
|
0…95 % non-condensing |
Storage relative humidity
|
0…95 % non-condensing |
Acoustic level
|
50 dBA |
Operating altitude
|
0…3000 ft |
Batteries & Runtime
Battery type
|
Lead-acid battery |
Battery voltage
|
24 V |
Extendable runtime
|
0 |
Included battery module
|
0 |
Empty battery slot
|
0 |
Battery charging power
|
576 W rated |
Packing Units
Unit Type of Package 1
|
PCE |
Number of Units in Package 1
|
1 |
Package 1 Height
|
33.5 cm |
Package 1 Width
|
23.5 cm |
Package 1 Length
|
47.7 cm |
Package 1 Weight
|
14.3 kg |
Contractual warranty
Warranty (in months)
|
24 UPS|12 Battery |
